HKUST and SUSTech Joint PhD Developed Explainable AI to Predict Dynamics of Riverine Nitrogen Flux from Unmonitored Watersheds

13 July 2022

Excessive riverine export of nitrogen caused by human activities poses huge threats to water security in coastal areas and marine ecosystems. Reducing the global nitrogen flux into oceans becomes an urgent front-burner issue in sustaining the Earth’s system within its safe operating space for humanity.

Given the current state of technology, long-term high-frequency monitoring of riverine nitrogen remains costly and applicable only for a small number of rivers worldwide. On the other hand, existing models, either process-based or empirical, are usually deficient in applicability beyond where they were built. Therefore, a coherent view of the daily dynamics of global riverine nitrogen export is still missing.

The authors from the Hong Kong University of Science and Technology (HKUST) and the Southern University of Science and Technology (SUSTech) have recently made advances in artificial intelligence (AI) technology to provide a reliable understanding of riverine nitrogen.

Their study, entitled “Predicting Dynamic Riverine Nitrogen Export in Unmonitored Watersheds: Leveraging Insights of AI from Data-Rich Regions”, was published in Environmental Science & Technology, a top journal in the field of environmental science.

Deep learning (DL), the cutting-edge AI technology, has achieved remarkable success in hydrology modeling, and has recently started to beemployed for water quality modeling. Most of the existing DL models of water quality do not explicitly account for basin-scale driving forces (e.g., hydrometeorological drivers and human activities) or static basin properties (e.g., land use and soil attributes), and therefore have limited transferability. The black-box nature of DL models also leads to the question of explainability. The potential of DL in water environment studies is yet to be exploited.

This study developed a DL-based approach to model the daily dynamic riverine export of dissolved inorganic nitrogen (DIN) in the North River watershed (NRW), a major subbasin of the Jiulong River watershed in Fujian Province, China (Figure 1).

The DL models of DIN concentration and flux were built using the long short-term memory (LSTM) neural network, with hydrometeorological data and nitrogen sources (i.e., fertilizer application and livestock breeding) as inputs. The DL models exhibited excellent accuracy for both DIN concentration and flux, with Nash-Sutcliffe efficiency coefficients (NSEs) up to 0.67 and 0.92, respectively, a performance unlikely to be achieved by generic process-based models with comparable data quality.

DL interpretation demonstrated that the LSTM-based models are able to reproduce the watershed processes regarding nitrogen transport, and such good explainability may be attributed to the unique architecture of LSTM.

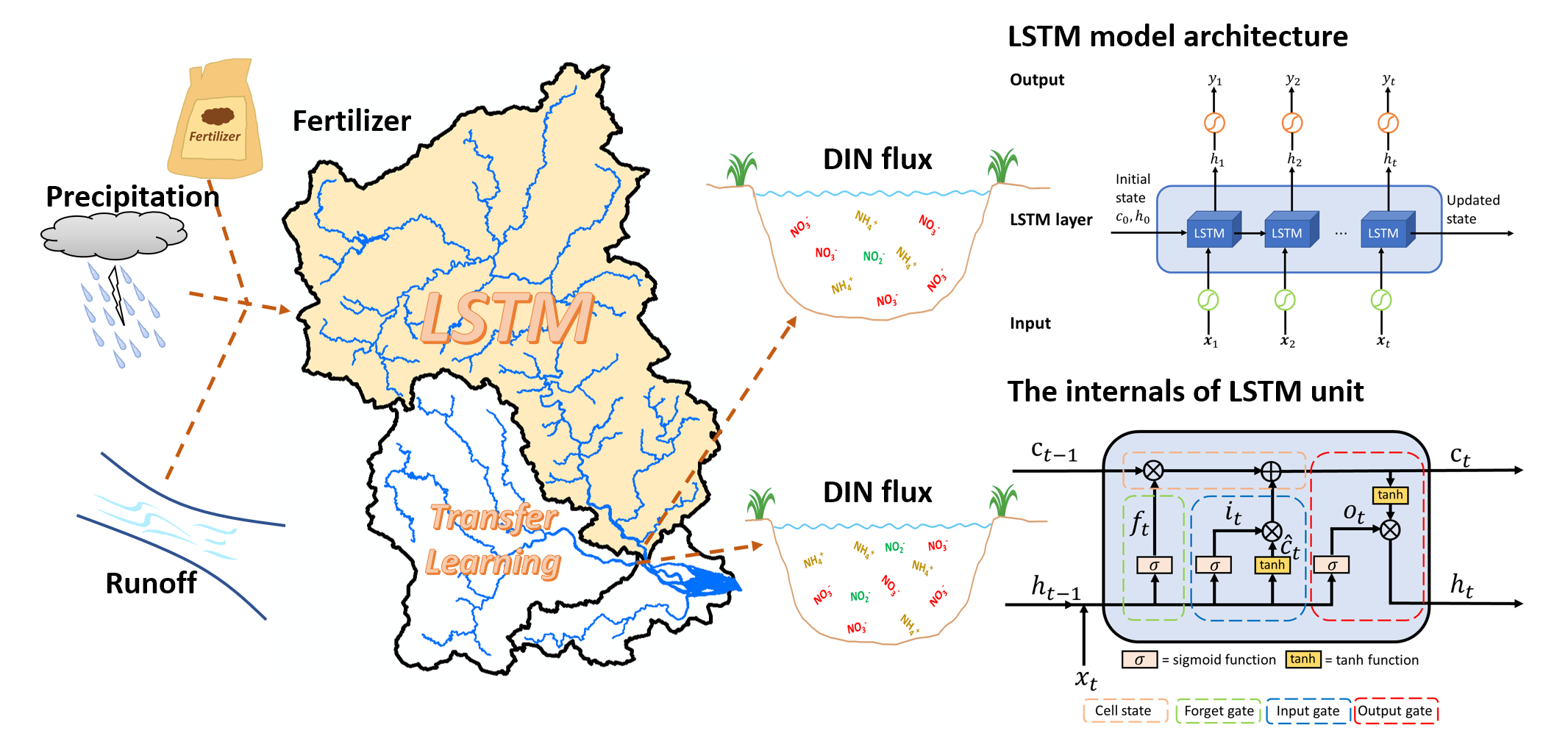

Figure 1. LSTM-based deep learning models

The DL models built in the NRW were further applied without retraining at seven distinct watersheds across Asia, Europe, and North America to test their transferability (Figure 2). These seven watersheds are significantly different in size, climate, and geographic and socioeconomic conditions.

Except in the Newport Bay Watershed (NPB) in the United States (mean NSE=0.32), the flux models performed well in the other six watersheds (mean NSE = 0.55-0.84), which demonstrates the existence of interbasin consistency regarding riverine nitrogen export across different continents.

The researchers’ further analysis indicated that such interbasin consistency stems from the similarities in rainfall-runoff relationships. An additional experiment showed that training a uniform flux model with data from multiple watersheds can further improve the model transferability.

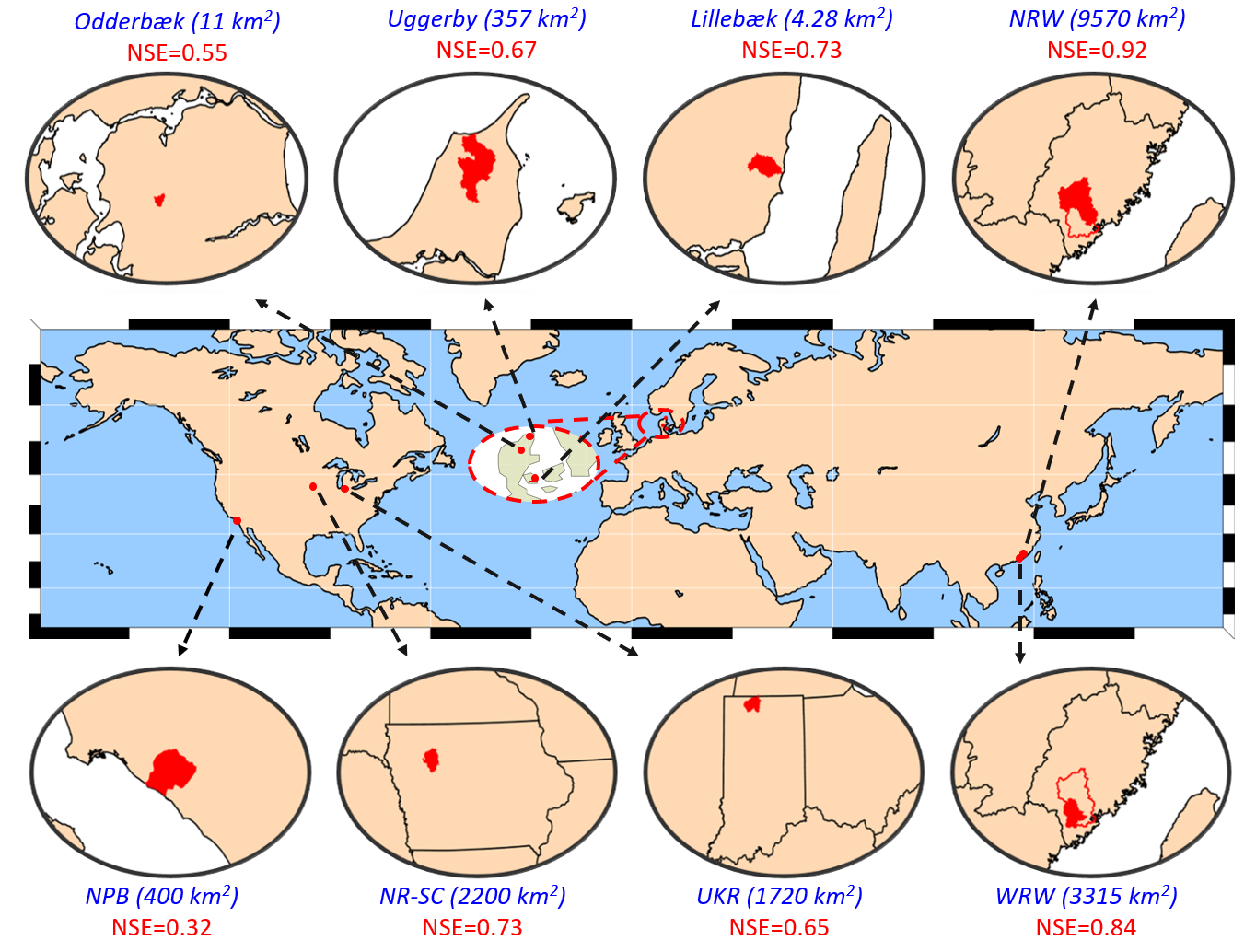

Figure 2. Transfer learning across different continents

This study demonstrates the great power of explainable AI in water environment modeling. It provides a potential shortcut to a consistent understanding of the global daily-resolution dynamics of riverine nitrogen export under the currently limited data conditions, which is significant for global water resources management.

Rui Xiong, a Ph.D. candidate under the joint Ph.D. program of HKUST and SUSTech, is the first author of this paper. Other ao-authors include Prof. Mengqian Lu (supervisor) from HKUST, Prof. Yi Zheng (co-supervisor, corresponding author) from SUSTech, Prof. Nengwang Chen from Xiamen University, and Prof. Yan Zheng from SUSTech.

Paper link: https://pubs.acs.org/doi/10.1021/acs.est.2c02232
